When to Replace the Whole Drain (Not Just the Stopper)

When to Replace the Whole Drain (Not Just the Stopper)

Two people can look at the same sink and give you two different answers. The person at the hardware store says a ten-dollar stopper will fix it. The plumber says the drain assembly needs replacing, and quotes a couple of hundred dollars for the visit. Both of them might be right - because a sink has two separate failure zones, and only one of them is the stopper.

The two quotes you get from two different people

What makes this confusing is that the symptoms overlap. A sink that will not hold water can be a seal problem or a seating problem. A sink that drains slowly can be the stopper, or the drain body, or the trap. And a sink with a leak can be leaking at the flange - which has nothing to do with the stopper at all. Sorting it out means looking at the drain from three angles: inside the basin, underneath the sink, and at the body itself.

Three problems a new stopper solves

The stopper is a plunger with a rubber seal, moved by a rod, and its failure modes are limited. First, the seal: rubber hardens and flattens, and once it stops deforming against the drain seat, water passes. Second, the linkage: the pivot rod behind the faucet can break, seize or slip out of its clip, so the lever moves and nothing happens. Third, the seating height: even a perfectly good stopper will not seal if the rod is connected at the wrong point and holds it off the seat. All three are stopper-side problems, all three are cheap, and all three are fixable in minutes.

Three problems it cannot solve

Then there are the failures that live in the assembly, and no stopper will touch them. The first is a leak at the flange: the joint where the drain meets the basin bottom is sealed with putty or a gasket, and when that fails you get water under the sink - a drip on the cabinet floor, not a leak inside the bowl. The second is corrosion: a drain body or tailpiece that has gone pitted and rusty eventually develops pinholes, and rust streaks under the sink are the warning. The third is a locknut that will not tighten, either because the thread is stripped, the nut is seized, or the drain body itself is cracked - at which point nothing you do from above will fix the seal.

Two failure zones in one sink
STOPPER SIDE - cheap 1. seal hardened or flat 2. linkage / pivot rod broken 3. seating height wrong Fix: seal or pivot rod kit, 5-15 min flange + putty gasket locknut pitting / rust on the body ASSEMBLY SIDE - replace it 1. flange leaking under the sink 2. corroded body or tailpiece 3. locknut stripped or seized Fix: whole drain assembly, 30-60 min Check #1: basin full, look underneath.
Stopper-side problems are the cheap ones; flange leaks, corrosion and a seized locknut live in the assembly below.

Three checks that tell you which you have

Three minutes with a flashlight settles it. First, close the drain, fill the basin, and look underneath with the water sitting: any moisture or drip at the flange or the locknut means the assembly, not the stopper. Second, pull the stopper out and look into the drain body - pitting, rust streaks, a rough seat or a visible crack all point to replacement. Third, and most decisive, try to tighten the locknut gently from below: if it spins freely, crunches, or refuses to take torque, the thread is gone and the assembly has to come out. If all three checks come back clean and the sink still will not hold water, you have a stopper problem, and it is the cheap one.

What the symptom tells you
Symptom Likely part What to replace
Will not hold water, nothing leaking below Stopper seal The stopper, or just its seal
Lever moves, stopper does nothing Linkage or pivot rod Pivot rod kit
Stopper rocks and never seats Seating height, or a pitted seat Adjust the rod; replace if the seat is pitted
Water under the sink at the flange Flange gasket or putty Whole drain assembly
Rust streaks and pitting on the body Corroded drain body Whole drain assembly
Locknut will not tighten Stripped or seized thread Whole drain assembly
Three checks decide whether this is a five-dollar part or an afternoon.

If the checks point to the stopper, our guide to replacing a pop-up drain stopper covers the twenty-minute version, and five fixes for a leaking drain covers the seal-first order.

What replacing the whole drain involves

It is a genuinely doable DIY job, and it is also the one where over-enthusiasm causes expensive damage. Put a bucket and a towel under the trap and disconnect it. Loosen the locknut from below, then push the drain body up and out of the basin. Clean the old putty off the flange and off the sink opening, and remove any old gasket material. Apply a fresh ring of plumber's putty - or silicone, but never both, because they do not bond to each other and you will end up with a channel for water. Seat the new drain, and tighten the locknut from below while holding the flange from above so it does not spin. Reconnect the trap and test with the drain closed before you put the tools away.

The cost comparison, honestly

A stopper or a seal is a five to twenty dollar part and a five to fifteen minute job. A complete drain assembly is fifteen to forty dollars and thirty to sixty minutes. A plumber is one hundred and fifty to three hundred dollars, mostly for the visit. The gap is wide enough that it is worth doing the three checks properly rather than guessing - because the worst outcome is not picking the wrong part, it is over-tightening a metal locknut on a thin porcelain basin and cracking the sink, which turns a forty-dollar job into a new vanity. Tighten to snug, hold the flange, and stop.

The bottom line

A stopper fixes three things: a hardened seal, a broken linkage, and a seating height that holds the plug off its seat. An assembly problem - a leaking flange, a corroded body, or a locknut that will not tighten - needs the whole drain out. Check underneath with the basin full, look at the body for pitting, and test the locknut by hand. That tells you whether you are buying a five-dollar seal or taking an afternoon with a wrench.

Common questions

How do I know if I need a new sink drain or just a stopper?

Close the drain, fill the basin and look underneath. Water or moisture at the flange or locknut means the assembly; a sink that will not hold water with no external leak usually means just the stopper or its seal.

How long does a sink drain assembly last?

Ten to twenty years for a metal assembly in normal use, less if the water is aggressive or the fittings are thin. Corrosion shows up as pitting, rust streaks and a tailpiece that flakes.

Can I replace a sink drain myself?

Yes - it is a 30 to 60 minute job with a wrench, plumber's putty and a bucket. The one risk to respect is over-tightening the locknut on a thin basin, which can crack the sink.

Should I seal the drain flange with putty or silicone?

Either, but never both - they do not bond to each other and the gap becomes a water channel. Putty is easier to remove later; silicone seals better on an uneven surface.

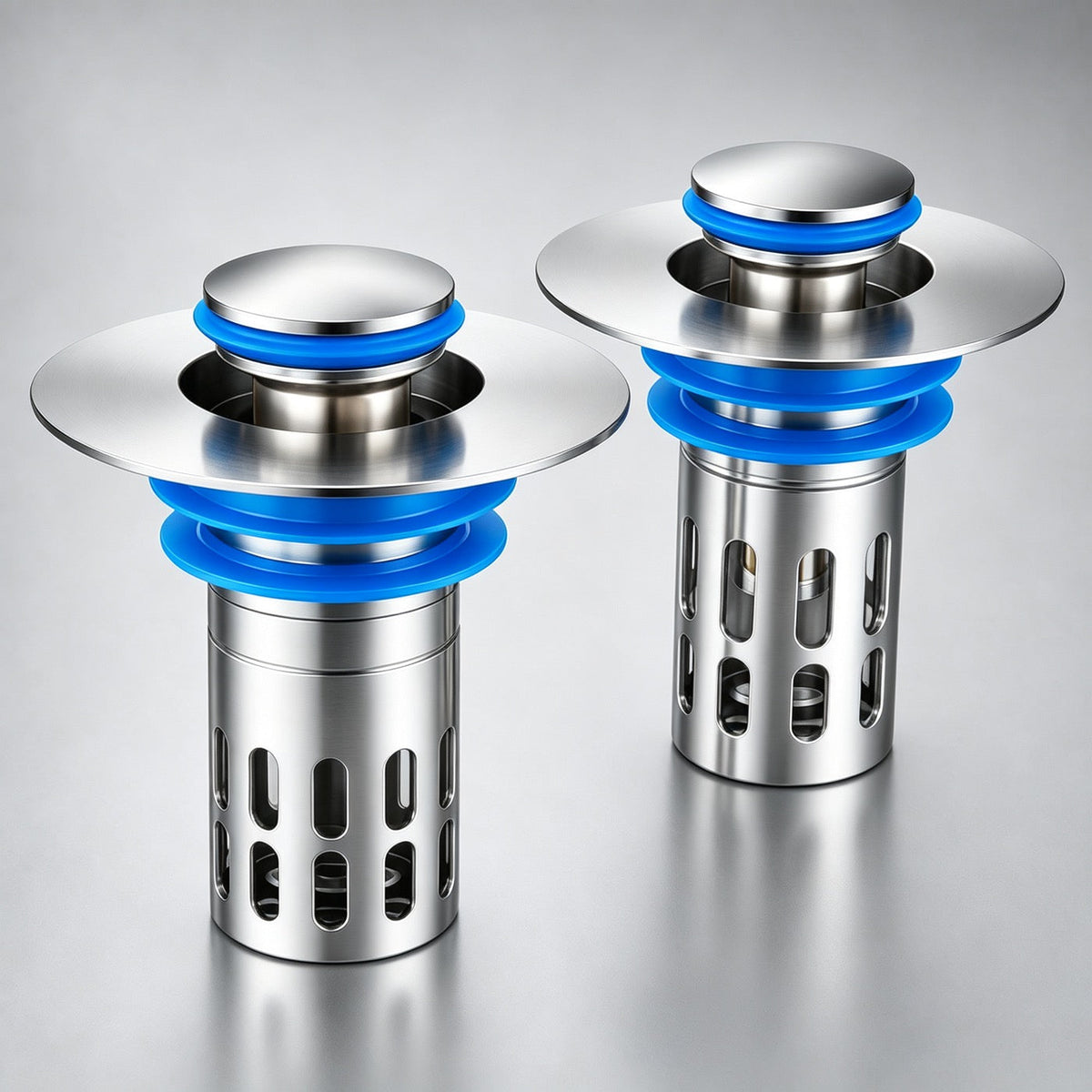

If the parts above the drain are what you are replacing, the one we make is our pop-up sink drain stopper - the basket lifts out, so cleaning it is a ten-second job.
